HTG3535CH Humidity and Temperature Sensor Module with 0-100%RH Operating Range

Model Number : HTG3535CH

Place of Origin : France

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Voltage Supply : 5 Vdc

Nominal Output @55%RH : 2.401~2.559 V

Humidity Average Sensitivity : +26 mV/%RH

Current consumption : 1.2 mA dc

Humidity Measuring Range : 0~100 %RH

Humidity Operating Range : 0~100%RH

Contact Now

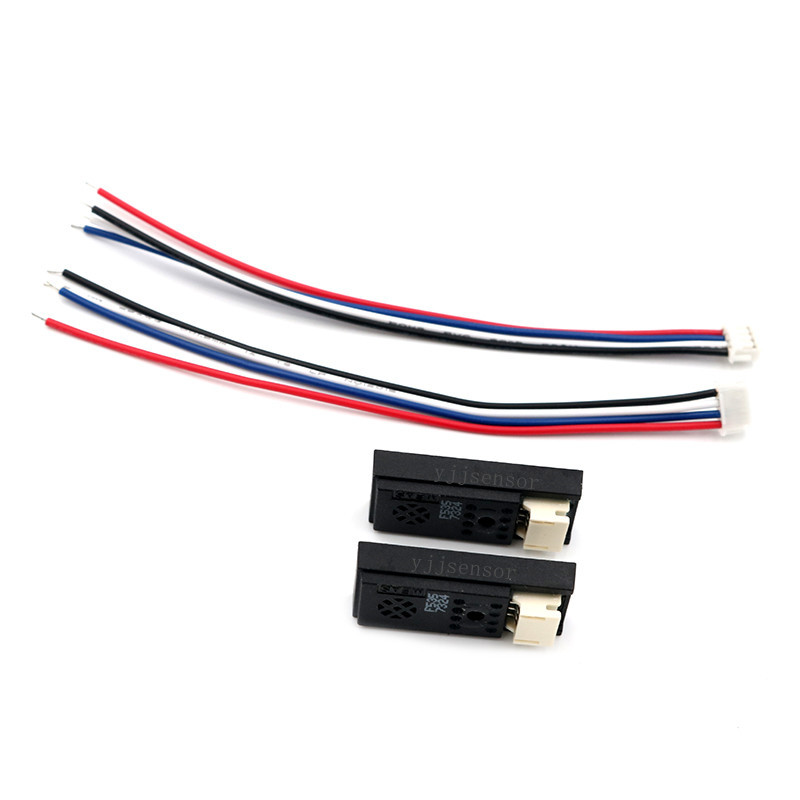

HTG3535CH Humidity and Temperature Sensor Module

HTG3535CH Humidity and Temperature Sensor Module DESCRIPTION:
Based on the rugged HUMIREL humidity sensor, HTG3535CH is a dedicated humidity and temperature plug and play transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module’s humidity linear voltage and direct NTC outputs. HTG3535CH is designed for high volume and demanding applications.

HTG3535CH Humidity and Temperature Sensor Module FEATURES:
• Voltage Supply: 5 Vdc
• Nominal Output @55%RH: 2.401~2.559 V
• Humidity Average Sensitivity: +26 mV/%RH
• Current consumption: 1.2 mA dc
• Humidity Measuring Range: 0~100 %RH
• Humidity Operating Range: 0~100%RH
• Temperature Operating Range: -40 ~110°C
• Suitable for small bulk assembly
• Product free from Lead, Cr (6+), Cd and Hg. Compliant with RoHS
• Full interchangeability. Better than +/-3%RH and +/-0.25°C
• Humidity calibrated within +/- 3% RH @ 55% RH
• Temperature measurement through NTC direct output
• Demonstrated reliability and long term stability
• Reliability not affected by repeated condensations

HTG3535CH Humidity and Temperature Sensor Module APPLICATIONS:
• Automotive
• Home Appliance
• Printers

Current consumption 1.2 mA dc
Humidity Measuring Range 0~100 %RH
Humidity Operating Range 0~100%RH
Temperature Operating Range -40 ~110°C

HTG3535CH Humidity and Temperature Sensor Module with 0-100%RH Operating Range
