AOF1010 Short Term Ultrasonic Oxygen Sensor For Oxygen Gas Flow Concentration Sensing

Model Number : AOF1010

Place of Origin : CN

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PCS

Delivery Time : 5-8 work days

Packaging Details : Standard packaging

Working Voltage : 5V

Preheating Time : 10s

Concentration Detection Range : 21% - 95.6%

Concentration Resolution : 0.1%

Flow Measurement Range : 0 - 10L/min

Flow Resolution : 0.1L/min

Contact Now

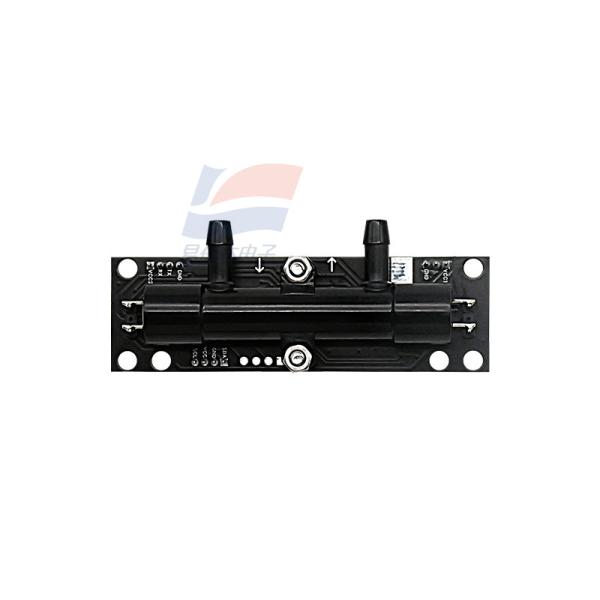

AOF1010 Short Term Ultrasonic Oxygen Sensor For Oxygen Gas Flow Concentration Sensing

Product Overview:

The AOF1010 ultrasonic oxygen sensor is an ideal, cost - effective, and practical oxygen concentration detection module based on the ultrasonic principle. It has the characteristics of high - precision, high - reliability, and ease of use, and can simultaneously detect concentration, flow, and temperature. It is widely used in agriculture, industry, commerce, environmental testing, especially in the oxygen generator industry.

Working Principle:

According to the physical transmission characteristics of ultrasonic waves, the sensor calculates the oxygen concentration by detecting the sum of the downstream and upstream times, and calculates the oxygen flow rate by detecting the difference between the downstream and upstream times. The temperature - measuring module in the sensor can detect the gas temperature and perform real - time temperature compensation on the gas concentration and flow rate through an algorithm.

Working Voltage 5V
Preheating Time 10s
Concentration Detection Range 21% - 95.6%
Concentration Measurement Accuracy ±1.8%
Concentration Resolution 0.1%
Flow Measurement Range 0 - 10L/min
Flow Resolution 0.1L/min
Flow Measurement Accuracy ±0.2L/min
Detection Period 500ms
Communication Mode UART, 9600bps
Working Temperature 5 - 55℃

AOF1010 Short Term Ultrasonic Oxygen Sensor For Oxygen Gas Flow Concentration Sensing
